Pilot Light Problems? Here's How to Fix Your Furnace

Why Your Furnace Pilot Light is Critical for Home Heating

Furnace pilot light problems are one of the most common reasons homeowners wake up to a cold house on winter mornings. This small but essential flame serves as the ignition source for your gas furnace's main burners - without it, your heating system simply won't work.

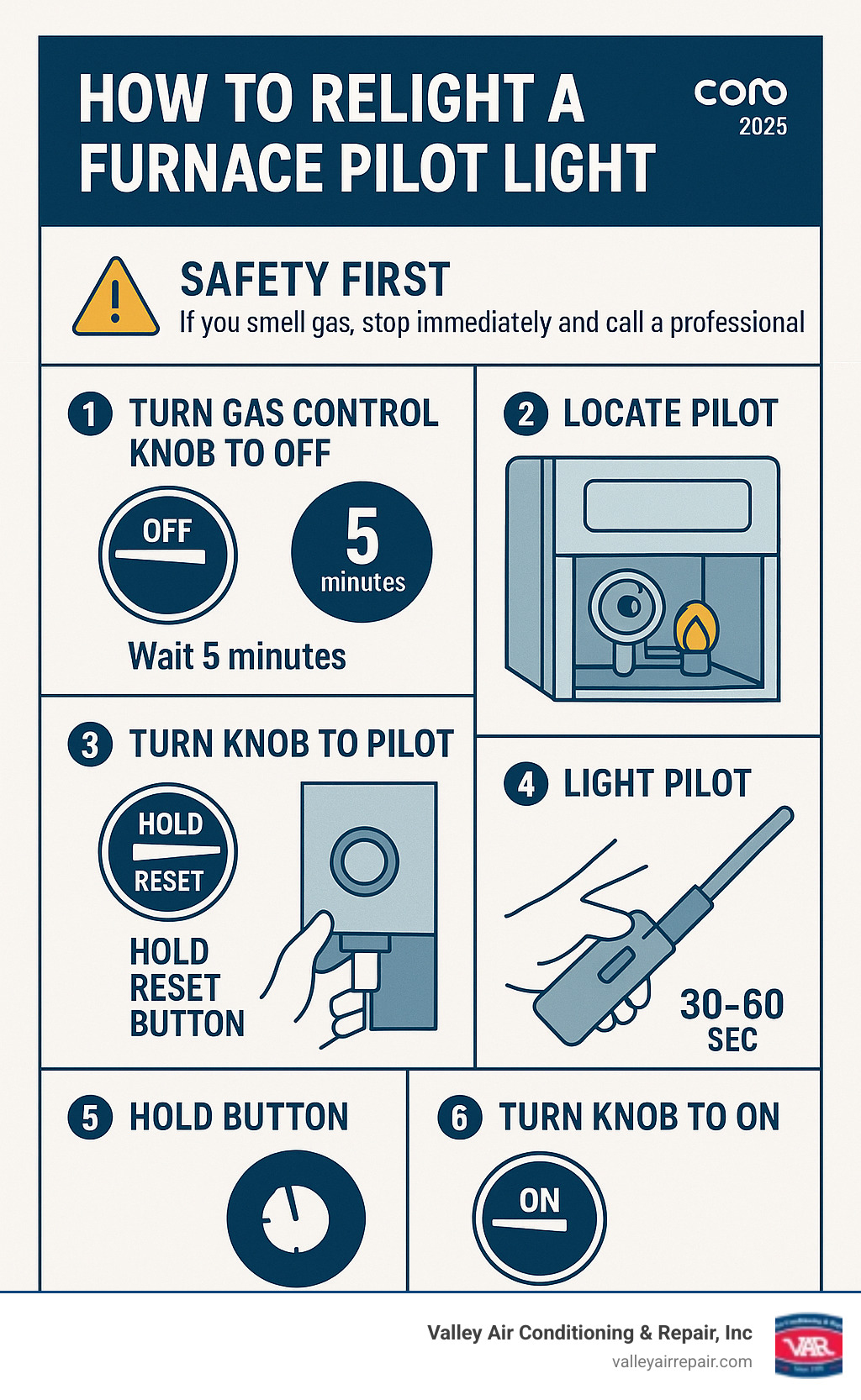

Quick Answer: How to Relight Your Furnace Pilot Light

1. Turn off the gas and wait 5 minutes for gas to dissipate
2. Locate the pilot assembly (usually at the bottom of your furnace)
3. Turn the control knob to "PILOT" and hold down the reset button
4. Light the pilot with a long lighter while holding the reset button
5. Hold for 30-60 seconds until the flame stays steady
6. Turn the knob to "ON" to restore normal operation

If your home uses an older gas furnace (typically 20+ years old), chances are it relies on a standing pilot light rather than the electronic ignition systems found in newer models. When this pilot light goes out due to drafts, dirt buildup, or equipment issues, your furnace won't be able to heat your home.

The good news? Relighting a pilot light is often a simple DIY fix that takes just a few minutes. However, safety must always come first when working with natural gas. If you smell gas or feel uncomfortable with any step, stop immediately and call a professional.

Most pilot light issues stem from common causes like a faulty thermocouple, clogged pilot orifice, or airflow problems. Understanding these components and following proper safety procedures can help you restore heat to your home quickly and safely.

Understanding Your Furnace's Ignition System

For many homeowners, the furnace pilot light is a familiar, if sometimes mysterious, component. What exactly is it, and what crucial role does it play in our heating system?

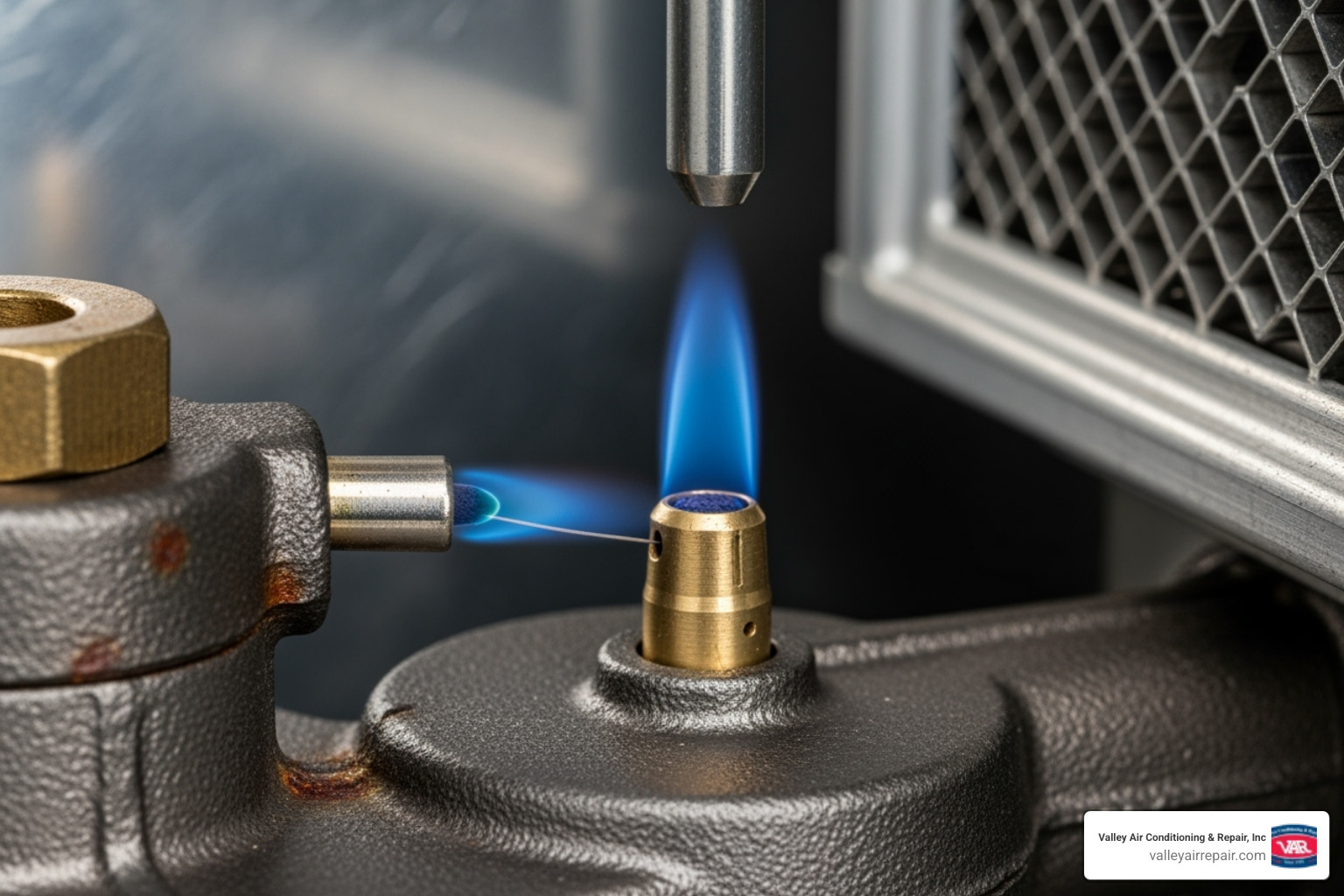

A pilot light is a small, continuously burning flame that acts as the ignition source for your furnace's main gas burner. When your thermostat signals for heat, gas flows to the main burner, and the pilot flame ignites it, allowing your furnace to produce heat. This simple but effective mechanism is also used in other gas appliances like water heaters and fireplaces. You can find more information about how furnaces operate on the Energy.gov website.

This constant flame ensures that whenever there's a call for heat, your furnace is ready to spring into action. It's a simple yet effective mechanism that has been a cornerstone of heating technology for decades.

Pilot Lights vs. Electronic Ignition

While the traditional furnace pilot light has served us well, heating technology has advanced. Newer models typically feature electronic ignition systems, which are a significant leap forward in efficiency and safety.

Modern furnaces transitioned to electronic ignition systems starting around 2010. These systems, such as hot surface igniters or intermittent pilot lights, improve efficiency by eliminating the need for a continuously burning flame. Instead of a standing pilot that burns gas 24/7, electronic igniters only activate when there's a demand for heat, consuming less gas and leading to lower energy bills.

Here's a quick comparison to help you understand the difference:

So, if you're wondering whether your furnace has a pilot light or an electronic igniter, its age is a good indicator. If it's an older unit, it likely has a pilot light. If not, it's probably using a more modern electronic system. For any questions about your heating system, including how it works or if it's time for an upgrade, our team at Valley Air Conditioning & Repair, Inc. is always here to help. We offer comprehensive heating services across the Valley, from Fresno to Kerman and beyond.

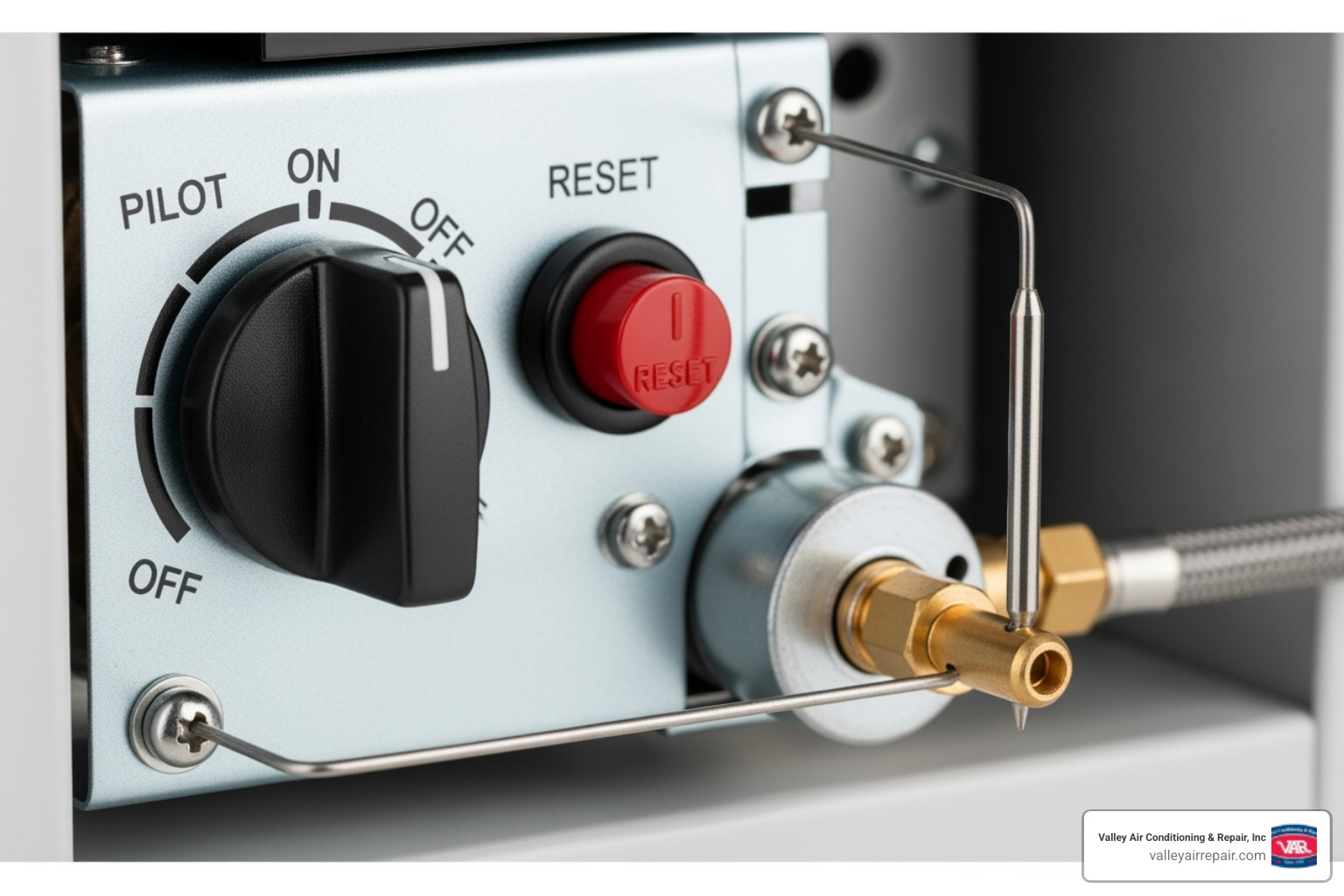

Key Components of the Pilot Light Assembly

To troubleshoot or relight your furnace pilot light, it's helpful to know the key components of its assembly. These parts work together to ensure your furnace ignites safely.

1. Gas Control Knob: This knob or switch on the gas valve controls the gas flow to the pilot and main burner. It typically has "ON," "OFF," and "PILOT" settings.
2. Reset Button: Located near the gas control knob, this button is pressed and held during relighting. It temporarily overrides the safety mechanism, allowing gas to flow for ignition.
3. Thermocouple: This is a critical safety device. The thermocouple is a small rod positioned in the pilot flame. When heated, it generates a tiny electrical current that signals the gas valve to stay open. If the pilot light goes out, the thermocouple cools, the current stops, and the gas valve closes automatically, preventing a gas leak.
4. Pilot Orifice (or Pilot Burner): This is the small nozzle where the gas for the pilot light exits and is ignited to produce a small, steady flame.
5. Gas Tube (or Pilot Tube): This small metal tube delivers gas from the main gas valve to the pilot orifice.

Understanding these components will help you safely approach the task of relighting your furnace pilot light. If any of these parts appear damaged or you're unsure about their function, it's always best to consult a professional. Our team at Valley Air Conditioning & Repair, Inc. has the expertise to diagnose and address any issues with your furnace's ignition system.

How to Safely Relight Your Furnace Pilot Light

If your furnace isn't heating because the furnace pilot light is out, relighting it is often a straightforward process. Follow this step-by-step guide, but safety is paramount.

Before you begin, gather a few essential tools:

• A long-reach lighter or long matches (never use a short match or standard lighter, you want to keep your hands clear of the burner area!)
• A flashlight (the furnace area can be dark)
• Your furnace's owner's manual (this is crucial, as instructions can vary by model)

Safety Precautions: Working with natural gas requires utmost care. If at any point you smell gas strongly, hear a hissing sound, or feel uncomfortable, stop immediately. Turn off the main gas supply to your home if you can, evacuate the premises, and call your gas company or emergency services from a safe distance. Do not attempt to relight the pilot if you suspect a gas leak.

Step 1: Turn Off Gas and Wait

The first and most critical step is to turn off the gas supply and allow any residual gas to dissipate.

1. Locate the Furnace's Gas Control Knob: This knob is typically found on the main gas valve, often near the bottom of your furnace. It usually has settings for "ON," "OFF," and "PILOT."
2. Turn the Knob to the "OFF" Position: If your pilot light is currently lit, turn this knob to "OFF."
3. Wait for Gas to Dissipate: It is crucial to wait at least five minutes for any unburned gas in the furnace housing to clear out. This prevents a dangerous buildup of gas that could ignite when you attempt to relight the pilot. Use this time to read your furnace's owner's manual for any model-specific instructions.

If you turn the knob to "OFF" and find it difficult to turn, or if it feels stuck, do not force it. This could indicate a problem with the valve itself, and you should call a professional technician for assistance.

Step 2: Locate and Prepare the Pilot Assembly

With the gas safely off and dissipated, it's time to prepare the furnace pilot light assembly for relighting.

1. Locate the Pilot Light Assembly: This is usually found near the main gas valve and burners, often at the bottom front of your furnace. It might be visible through a small viewing window or located behind a removable access panel. Consult your owner's manual for the exact location.

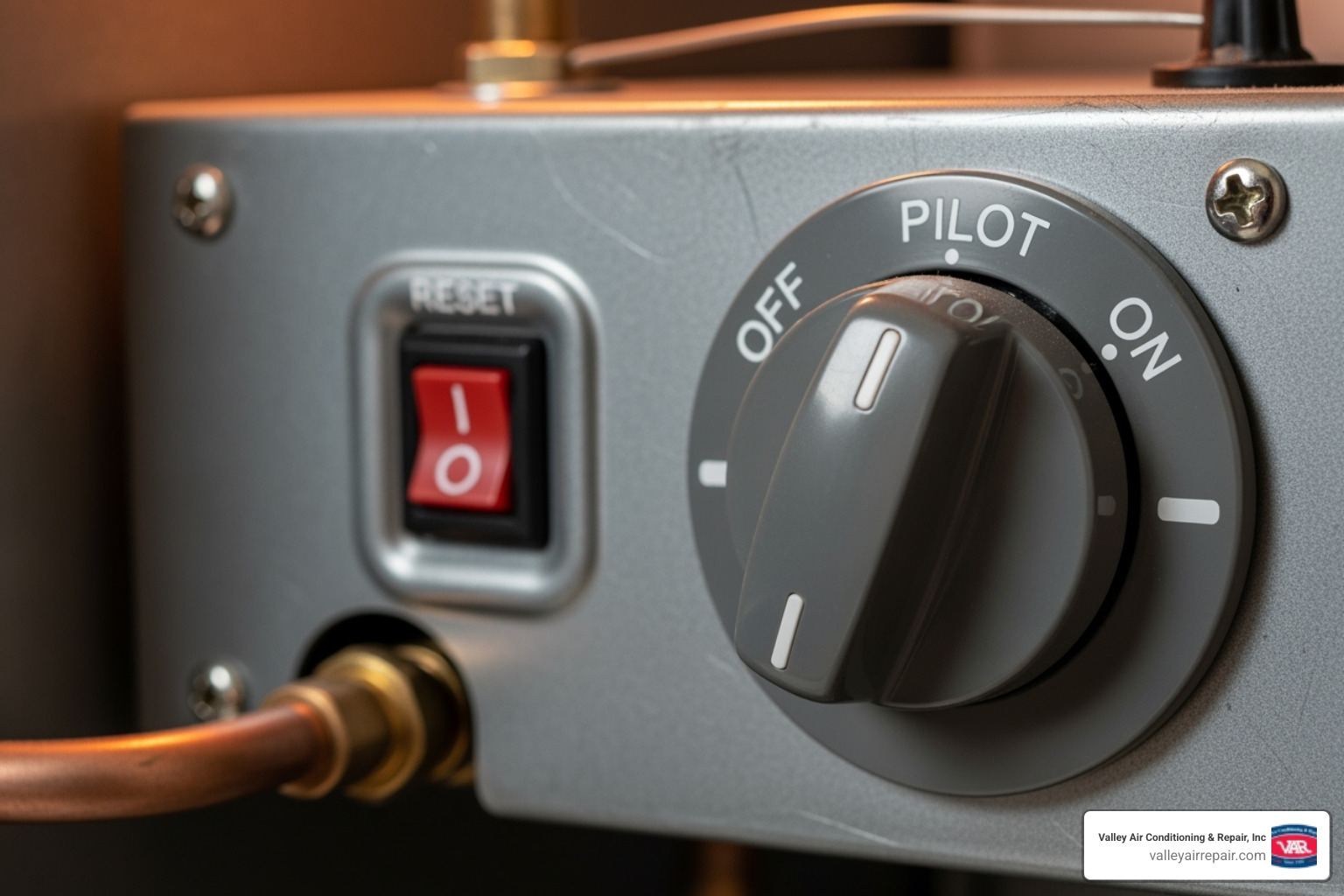

2. Identify the Control Knob and Reset Button: You'll be working with the same gas control knob from Step 1, but this time you'll turn it to the "PILOT" setting. Also, identify the reset button, which you'll need to press and hold.

3. Turn the Control Knob to "PILOT": Once you've located the assembly, turn the gas control knob to the "PILOT" position. You might hear a faint hiss of gas as it begins to flow to the pilot.

Step 3: Ignite the Flame and Set to ON

With gas flowing to the pilot, it's time to ignite the flame.

1. Press and Hold the Reset Button: While holding the reset button down firmly, bring your long-reach lighter or lit match to the pilot orifice.
2. Ignite the Pilot Light: Position the flame directly over the pilot opening. The gas flowing through the orifice should ignite, creating a small, steady flame.
3. Continue Holding the Reset Button: Once the pilot light ignites, continue to hold the reset button down for at least 30 to 60 seconds. This crucial step allows the thermocouple to heat up and generate enough voltage to keep the gas valve open. If you release it too soon, the pilot light will go out again.
4. Slowly Release the Reset Button: After holding for the recommended time, slowly release the reset button. The pilot light should remain lit. If it goes out, repeat steps 2 and 3, ensuring you hold the button down for the full duration.
5. Turn the Control Knob to "ON": Once the pilot light is burning steadily, turn the gas control knob from "PILOT" to the "ON" position. You should hear the main burners ignite with a whoosh, and your furnace will begin its normal heating cycle.
6. Observe Your Furnace: Stand by for a few minutes to ensure the main burners stay lit and the furnace operates as expected. You can find more detailed visual guides on how to light a furnace pilot light on sites like HVAC.com.

If the pilot light won't stay lit after a few attempts, or if the main burners don't ignite, it's a sign of a more complex issue. This is when it's time to call in the professionals. Our team at Valley Air Conditioning & Repair, Inc. is always ready to assist with your heating repair needs in Fresno, CA, and surrounding areas.

Troubleshooting Common Furnace Pilot Light Problems

If your furnace pilot light keeps going out after you've relit it, your furnace likely has an underlying issue. Professional diagnosis is essential for your comfort and safety.

Why Your Pilot Light Keeps Going Out

A furnace pilot light that repeatedly goes out is a symptom of a deeper problem. Here are the most common culprits:

• Faulty Thermocouple: This is the most common cause. If the thermocouple is dirty, old, or misaligned, it won't get hot enough to signal the gas valve to stay open, causing the pilot to go out. A weak or yellow pilot flame can also prevent the thermocouple from heating properly.
• Drafts or Poor Ventilation: A strong draft can blow out the pilot light. This can be caused by open windows, a cracked heat exchanger, or an obstructed flue pipe. A leak in an output duct can also create a draft. If this happens frequently, you may have a ventilation problem.
• Clogged Pilot Orifice: The pilot orifice can get clogged with dirt or debris, restricting gas flow. This leads to a weak or flickering flame that can't heat the thermocouple or simply goes out. A dirty intake valve can also limit oxygen, extinguishing the flame.
• Gas Supply Issues: Problems with the gas supply can prevent the pilot light from staying lit. This could be a faulty gas valve, a blocked pipe, a malfunctioning gas regulator, or a utility disruption. If other gas appliances are also affected, contact your gas utility company.

If you encounter any of these recurring issues, it's crucial to seek professional help. Our team provides expert furnace repair in Fresno, CA, and is equipped to diagnose and fix these complex problems safely.

Dangers of a Malfunctioning Furnace Pilot Light

A malfunctioning furnace pilot light can pose serious safety risks that go beyond just discomfort. It's vital to be aware of these potential dangers:

• Carbon Monoxide (CO) Risk: A healthy furnace pilot light should burn bright blue. A yellow or orange flame indicates incomplete combustion, which can produce carbon monoxide, a dangerous, odorless, and colorless gas. CO poisoning can cause flu-like symptoms and can even be fatal. Always ensure you have working carbon monoxide detectors in your home.
• Inefficient Gas Burning: An orange or yellow flame indicates a poor gas-to-air mixture, often due to a dirty intake valve. This wastes gas, leading to higher energy bills, and may not properly heat the thermocouple, causing frequent outages.
• Gas Leak Signs: If the pilot light goes out and a faulty gas valve doesn't close completely, gas can leak into your home. Natural gas has a distinct sulfur-like odor (like rotten eggs) added to help detect leaks. If you smell gas, leave your home immediately and call your gas company or emergency services from a safe distance. Do not use any electrical switches or open flames.

We cannot stress enough the importance of addressing any pilot light issues promptly. Your family's safety is our top priority.

Essential Maintenance for Your Furnace Pilot Light

Proactive maintenance is key to preventing furnace pilot light problems and ensuring your heating system operates safely and efficiently.

• Annual Check-ups: Schedule an annual furnace tune-up before the heating season begins. A technician will inspect the entire furnace, including the pilot light assembly, gas connections, and safety controls like the thermocouple. This preventative maintenance can catch small issues before they become major repairs.
• Cleaning the Pilot Assembly: Dirt and dust can accumulate on the pilot assembly. A professional tune-up includes a thorough cleaning. If you suspect a clogged pilot light nozzle, a professional can safely clean it.
• Checking the Thermocouple: A professional technician will test the thermocouple's voltage output during an annual inspection to ensure it's functioning correctly and replace it if it's faulty.
• Changing Air Filters: A dirty air filter restricts airflow, which can cause dust to clog the pilot orifice. We recommend changing your air filter every 1-3 months during peak heating season. This simple DIY task is crucial for your HVAC system maintenance.
• Keep the Area Clear: Ensure the area around your furnace is clear of clutter, dust, and flammable materials. Good airflow helps the unit operate efficiently and reduces dust buildup.

By staying on top of these maintenance tasks, you're not just preventing pilot light issues; you're extending the lifespan of your furnace, improving its efficiency, and ensuring the safety of your home and family.

Frequently Asked Questions about Furnace Pilot Lights

We understand that furnace pilot light issues can be confusing and sometimes concerning. Here are answers to some of the most common questions we receive from homeowners in the Valley and beyond:

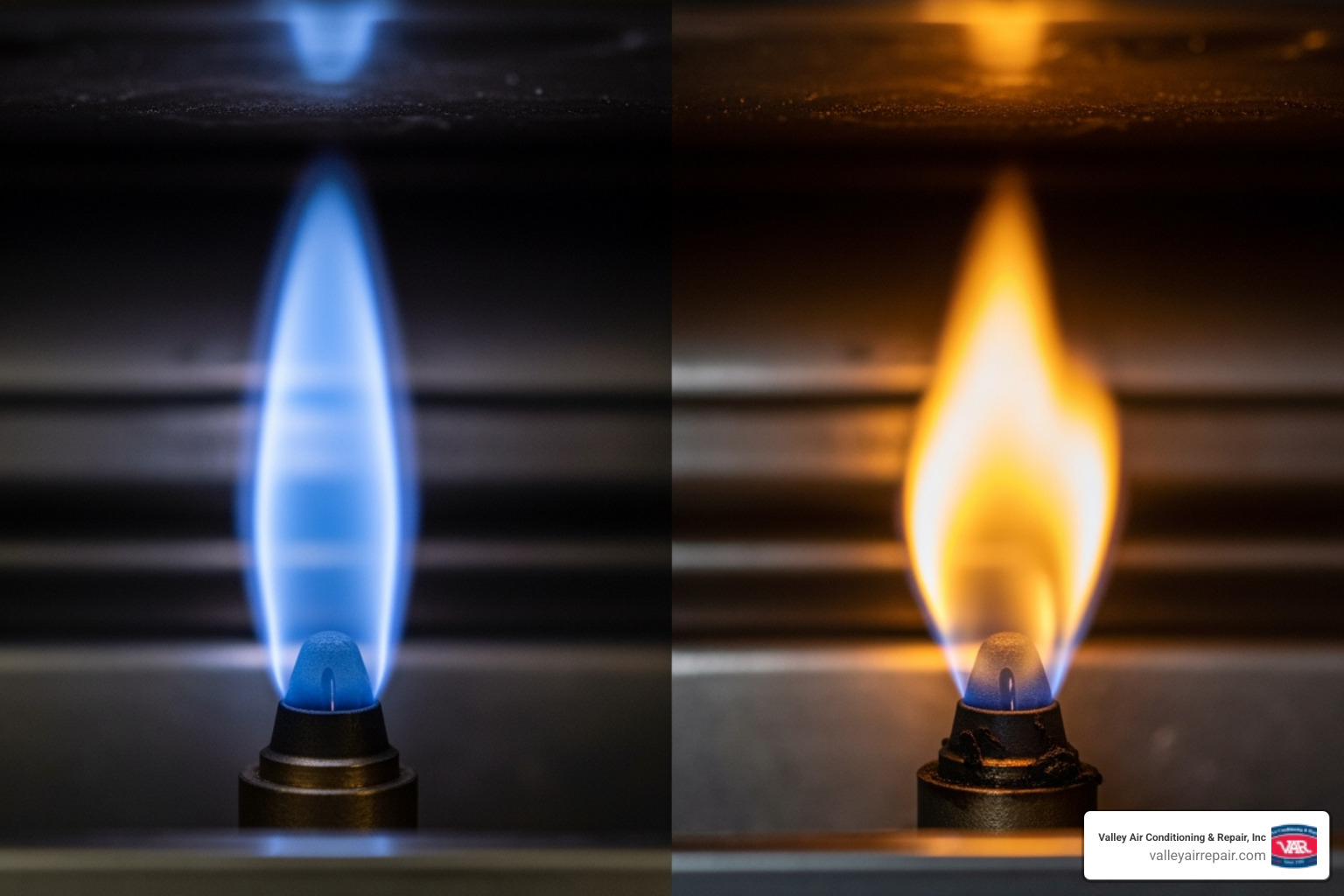

What does it mean if my pilot light flame is yellow or orange?

A healthy furnace pilot light should always burn with a strong, steady blue flame. If yours appears yellow, orange, or flickering, it's a clear sign of incomplete combustion. This typically means the pilot isn't getting enough oxygen or there's an obstruction. Common causes include:

• Dirty or Clogged Pilot Orifice: Accumulation of dirt, dust, or soot can partially block the tiny opening, preventing proper gas flow and mixing with air.
• Poor Airflow/Ventilation: Issues with your furnace's ventilation system, dirty air filters, or even household drafts can disrupt the air-to-gas ratio needed for a clean burn.

The most significant danger of a yellow or orange flame is the potential production of carbon monoxide (CO). This odorless, colorless gas is highly toxic. If you observe a yellow or orange flame, it's crucial to call a professional HVAC technician to inspect and clean the pilot assembly and ensure safe operation.

How do I know if my furnace has a pilot light?

The easiest way to tell if your furnace has a pilot light is by its age and a quick visual check:

• Age of Furnace: Furnaces 20 years old or older typically have traditional standing pilot lights. Modern furnaces transitioned to electronic ignition systems starting around 2010. If your furnace was installed after this period, it highly likely has an electronic igniter.
• Visual Check: For older models, look for a small, continuous blue flame. This flame is usually visible through a small viewing window on the furnace, or you might need to open a small access panel near the bottom of the unit. You'll also typically find a gas control knob with "PILOT," "ON," and "OFF" settings if you have a pilot light system. If you don't see a flame and there's no such knob, you likely have an electronic ignition. Always consult your owner's manual if you're unsure.

I've tried relighting the pilot twice and it won't stay lit. What's next?

If the furnace pilot light won't stay lit after two careful attempts, stop trying to light it. This indicates an underlying mechanical issue that requires professional attention for your safety. The most common culprit is a malfunctioning thermocouple, but it could also be a clogged pilot orifice or a problem with the gas supply.

At this point, it's time to call a professional HVAC technician. Our experts at Valley Air Conditioning & Repair, Inc. are trained to diagnose these complex issues and perform the necessary repairs safely. We're here to help whether you're in Fresno, Clovis, Kerman, or any of our service areas.

Keep Your Home Warm and Safe

Dealing with a cold home due to a malfunctioning furnace pilot light can be frustrating, but as we've explored, relighting it is often a manageable DIY task for homeowners with older furnace models. By understanding the purpose of the pilot light, familiarizing yourself with its components, and following our step-by-step guide with meticulous attention to safety, you can often restore your home's warmth quickly and efficiently.

Safety always comes first. Never ignore the smell of gas, and if you're ever uncomfortable with any step or suspect a deeper issue, please don't hesitate to reach out. Proactive maintenance, including annual furnace tune-ups, is the best way to prevent these issues from occurring in the first place, ensuring your heating system runs reliably and safely for years to come. This also helps you avoid unexpected heating repair needs in Fresno, CA.
