What It Means When Your AC Breaker Keeps Tripping

Understanding ac circuit breaker keeps tripping what it means

#

Ac circuit breaker keeps tripping what it means is something every homeowner in Modesto and the Central Valley deserves a straight answer to — and here it is: your breaker is cutting power because your AC is drawing more electricity than the circuit can safely handle. This is a built-in safety feature designed to prevent overheating, damaged wiring, and electrical fires.

Here are the most common reasons it happens:

• Dirty air filter — restricts airflow, forcing the system to work harder and draw more power
• Dirty condenser coils — trap heat, pushing electrical demand higher
• Failing capacitor — causes the motor to spike in current draw on startup
• Broken outdoor fan — prevents heat from escaping, overloading the system
• Loose or damaged wiring — creates electrical shorts or arcing
• Worn-out circuit breaker — trips even under normal electrical load
• Failing or grounded compressor — draws dangerously high current, often trips instantly

Think of a tripped breaker as a warning signal, not just an inconvenience. It is telling you something inside your AC system or electrical circuit needs attention.

It is fine to reset the breaker once and see if the system runs normally. But if it trips again — stop. Repeatedly resetting a tripping breaker without fixing the underlying cause can damage your AC components or, in serious cases, create a fire hazard.

The good news is that many causes are straightforward to identify. Some, like a clogged air filter, you can check yourself in minutes. Others — like a grounded compressor or loose panel wiring — need a licensed HVAC or electrical professional to diagnose safely.

To understand why your air conditioner is suddenly going dark, we first have to look at what that little switch in your gray metal box actually does. A circuit breaker is essentially a safety hero. Its job is to monitor the flow of electricity to a specific part of your home—in this case, your HVAC system.

Every breaker has a specific amperage rating. This is the maximum amount of electrical current the circuit can handle before it starts to get dangerously hot. When your AC starts pulling more power than that rating allows, the breaker "trips" (flips to the middle or off position) to break the connection. If it didn't do this, the wires could melt, potentially leading to a house fire.

If you find your AC unit wont start ultimate guide helpful, you'll know that the startup phase is when the unit is under the most stress. During May 2026, as we head into another warm Central Valley summer, your AC’s electrical demand is at its peak. If the system is struggling to start or stay running, the breaker is your first line of defense.

Difference between overload and short circuit

Not all trips are created equal. Knowing the difference can help you understand the urgency of the repair.

1. Circuit Overload: This is the most common cause. It happens when the AC is working way too hard and slowly builds up heat in the breaker until it snaps. This often happens if you have an AC not starting due to a mechanical clog or a very hot day where the system never gets a break.
2. Short Circuit: This is more "violent" electrically. It occurs when a "hot" wire touches a neutral wire or another hot wire. This causes an immediate, massive surge of current that trips the breaker instantly.
3. Ground Fault: Similar to a short circuit, this happens when a hot wire touches a grounded part of the system, like the metal casing of the AC unit. This is a major safety risk and requires professional attention immediately.

Common Mechanical Causes for System Strain

Often, the reason for ac circuit breaker keeps tripping what it means isn't an electrical failure at all, but a mechanical one. When the mechanical parts of your AC can't do their job efficiently, they "call" for more power to compensate.

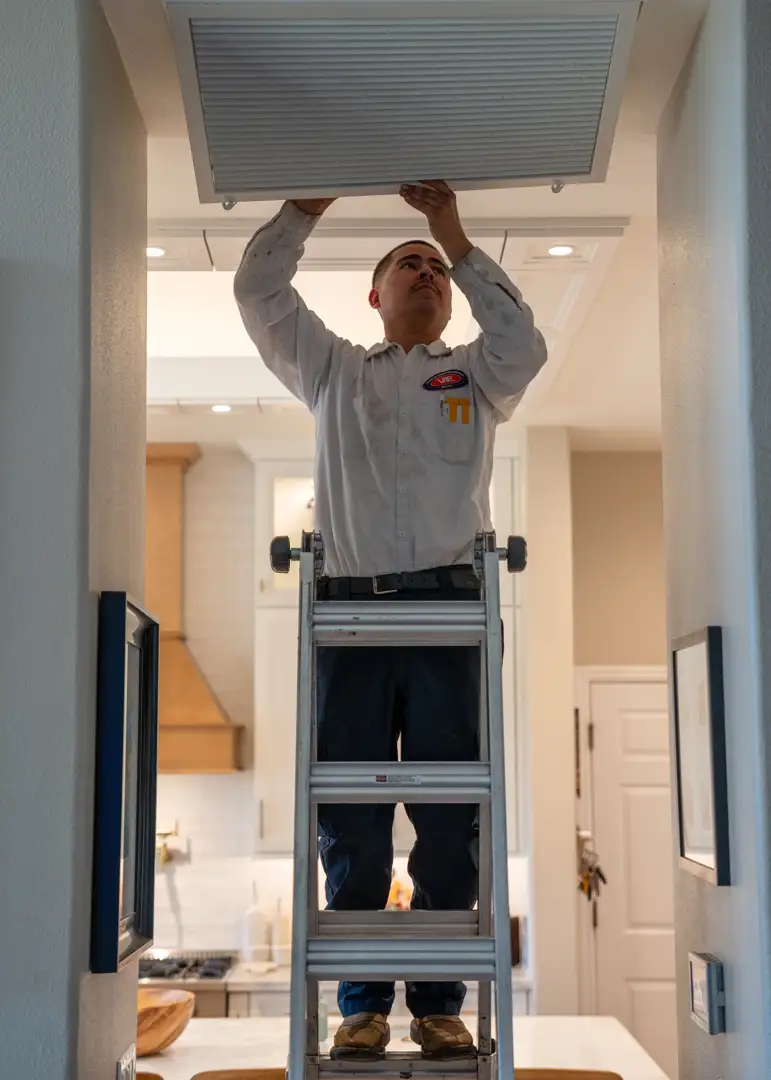

The number one culprit? A dirty air filter. It sounds simple, but a clogged filter is like trying to breathe through a thick pillow. It restricts airflow, which forces the blower motor to work double-time to pull air through. This extra work increases the amperage draw. Furthermore, restricted airflow can cause your evaporator coils to freeze up. When the system tries to run with frozen coils, the strain on the compressor becomes immense, eventually tripping the breaker. This is also one of the top reasons your AC is blowing warm air.

Mechanical Issues: Why your ac circuit breaker keeps tripping what it means

Beyond the filter, the outdoor unit (the condenser) plays a huge role in electrical stability.

• Dirty Condenser Coils: The outdoor coils are responsible for releasing the heat collected from inside your home. In areas like Fresno or Modesto, dust and grass clippings can coat these coils like a blanket. This "insulation" prevents heat dispersal, causing the system to run hotter and hotter. If you've wondered why is my AC running but not cooling, dirty coils are a likely suspect. The compressor will eventually overheat and pull too much current, tripping the breaker.
• Outdoor Fan Motor Failure: The fan on top of your outdoor unit pulls air across the coils. If the motor is failing or the blades are stuck, the refrigerant won't cool down. This leads to skyrocketing pressures and electrical overloads.

Electrical Component Failures and Wiring Issues

Sometimes the problem is hidden deep within the electrical components of the unit itself.

One of the most frequent parts to fail is the capacitor. Think of the capacitor as a small battery that gives the motor a "kickstart" to get running. If the capacitor is weak or failing, the motor will struggle to start, drawing a massive surge of electricity (known as Locked Rotor Amps) that snaps the breaker instantly. You might hear the AC making a buzzing noise as the motor tries and fails to turn over.

The most serious electrical failure is a grounded compressor. This happens when the electrical windings inside the compressor break down and hit the side of the metal housing. This creates a direct path to the ground, causing a dangerous short circuit. Usually, if your compressor is grounded, the breaker will trip the very millisecond the AC tries to turn on.

Loose connections and aging breakers

We also have to consider the wiring and the breaker itself. Over years of operation, the vibrations from your AC unit can actually loosen the wire connections in your electrical panel or at the unit’s disconnect box. Loose wires create resistance, and resistance creates heat. This heat can trip the breaker even if the AC is drawing a normal amount of power.

If you find your AC not turning on and notice the breaker feels hot to the touch or smells like ozone, you likely have an electrical arcing issue. Additionally, breakers don't last forever. The internal springs can weaken over time, leading to "nuisance tripping" where the breaker flips simply because it’s old and worn out. Sometimes, you might even hear the AC making a hissing sound near the electrical components if there is a significant arcing problem.

Troubleshooting and Safety Steps for Central Valley Homeowners

If your breaker trips, don't panic, but do be smart. Follow these steps to safely troubleshoot the issue at your home in Clovis, Turlock, or Modesto.

When you attempt a reset, follow the "30-minute rule." Turn your thermostat to the "OFF" position. Go to your electrical panel and flip the AC breaker all the way to "OFF" and then back to "ON." Wait about 30 minutes before turning the thermostat back to "COOL." This allows the internal pressures in the AC system to equalize, making it easier for the compressor to start. For more detailed local advice, check out our AC repair Fresno CA complete guide.

When to Call a Professional for ac circuit breaker keeps tripping what it means

There are certain "red flags" that mean you should put down the flashlight and call us immediately:

1. The "Instant Trip": If the breaker flips the moment you turn the AC on, you likely have a short circuit or a grounded compressor. Do not keep trying to reset it.
2. Burning Smells: If you smell smoke or a "plastic" burning odor near the unit or the electrical panel, shut the power off immediately.
3. Strange Sounds: If your AC is suddenly making loud noises like grinding, screaming, or a whistling sound, something is mechanically failing and drawing too much power.
4. Repeated Trips: If it trips twice in a 24-hour period, there is a persistent fault that needs a pro. Our AC repair Fresno ultimate guide covers many of these scenarios in depth.

Frequently Asked Questions about AC Breaker Trips

Can a dirty air filter really trip my circuit breaker?

Absolutely. It is actually one of the most common causes we see in the Central Valley. When the filter is blocked, the blower motor has to spin harder and longer to move air. This increases the electrical load. If left long enough, the heat buildup from this overexertion will exceed the breaker's limit. Regular maintenance—changing your filter every 1–3 months—is the easiest way to prevent this.

Is it safe to reset my AC breaker more than once?

We recommend resetting it only once. If the breaker trips again immediately or shortly after, it is a clear warning that there is a dangerous electrical condition or a severe mechanical failure. Repeatedly forcing electricity into a "shorted" or "grounded" system can lead to an electrical fire or permanent damage to your expensive compressor.

Why does my AC trip the breaker only on very hot days?

This usually points to a "weak" component or a system that is struggling with heat dispersal. On a 100-degree day in Modesto, your AC has to work much harder to move heat from inside to outside. If your condenser coils are even slightly dirty, or if the refrigerant level is slightly off, the system's internal pressure and temperature will redline, causing the amp draw to spike and trip the breaker.

Conclusion

At Valley Air Conditioning & Repair, Inc., we’ve been helping our neighbors in Modesto, Fresno, and throughout the Valley since 1970. We know how stressful it is when your cooling fails right when you need it most. Understanding ac circuit breaker keeps tripping what it means is the first step toward a safer, cooler home.

Whether it’s a simple filter change or a complex electrical repair, our team is built on trust and honorable intentions. Don't let a tripping breaker turn into a major system failure. If your AC is acting up this May 2026, reach out to the experts who treat your home like their own.

For reliable diagnostics and expert repair, visit our Professional Air Conditioning Services page or give us a call today. We're here to keep the Valley cool!
